HASL/ENIG Electronic PCB Board 2oz FR4 TG150 1.6mm Green Soldermask
Linked Electronics is a PCB manufacture in China, our factory was founded back in 1998. And in 2015, 2 SMT line was introduced to our factory, and we are now providing one stop PCB solution, electronic PCB
fabriciation, PCB board SMT service and components sourcing.
Certified with UL, TS16949. Rohs and Reach, Linked electronics is aways doing our best to exceed our customers expection all the time.
| Type of Assembly | THD (Thru-Hole Device), SMT (Surface-Mount Technology), Double-sided SMT & THD mixed |
| Solder Type | Water Soluble Solder Paste,Leaded and Lead-Free. |
| Components | Passives parts, smallest size 0201;
BGA, uBGA, QFN, POP, and Leadless chips;
Fine Pitch to 0.8Mils;
BGA Repair and Reball; Part Removal and Replacement
Connectors and terminals. |
| File Formats | Bill of Materials Gerber Files Pick-N-Place File(XYRS). |
| Type of Service | Turn-Key, Partial Turn-Key or Consignment. |
| Component Packaging | Reels,cut tape,Tube and tray,Loose parts and bulk. |
| Testing | X-ray Inspection
AOI (Automated Optical Inspection)
ICT (In-Circuit Test)/Functional Testing |
PCB Board Technology
Our technical knowledge comes from many years of PCB manufacturing experience, continuous innovation and careful cultivation of technical leaders, as well as strict quality assurance inspection.
Our senor expert team can provide practical experience for all new and old customers at any time, to help solve any technical problems and improvde production efficency.
OEM/ODM/EMS Services for PCBA:
- PCBA, PCB Board assembly: SMT & PTH & BGA
- PCBA and enclosure design
- Components sourcing and purchasing
- Quick prototyping
- Plastic injection molding
- Metal sheet stamping
- Final assembly
- Test: AOI, In-Circuit Test (ICT), Functional Test (FCT)
- Custom clearance for material importing and product exporting
Capability - SMT
- Lines 9(5 Yamaha,4KME)
- Capacity 52 million placements per month
- Max Board Size 457*356mm.(18”X14”)
- Min Component size 0201-54 sq.mm.(0.084 sq.inch),long connector,CSP,BGA,QFP
- Speed 0.15 sec/chip,0.7 sec/QFP
Capability - PTH
- Lines 2
- Max board width 400 mm
- Type Dual wave
- Pbs status Lead-free line support
- Max temp 399 degree C
- Spray flux add-on
- Pre-heat 3

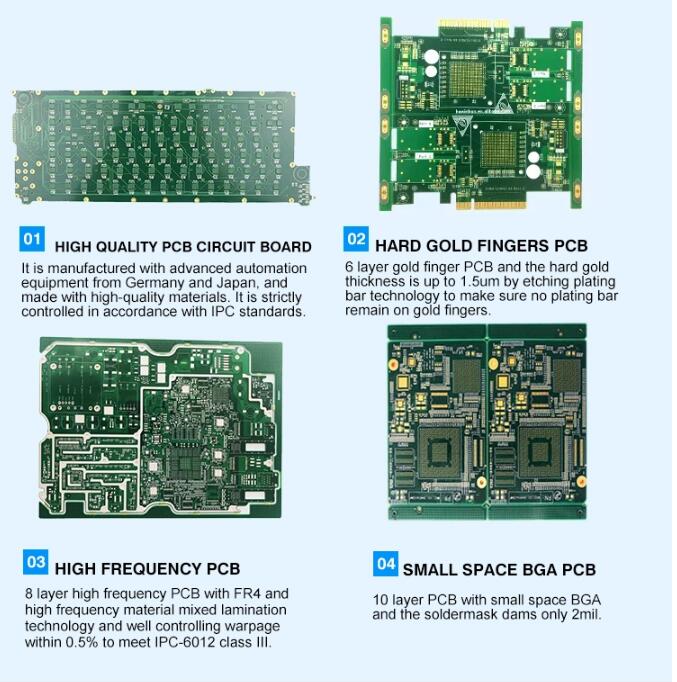

PCB Product Show
Below, there are some PCB booard produced by Linked Electronics, which follows IPC class 2 standard.
You will find gold finger PCB, multilayer PCB, BGA PCB board etc.
