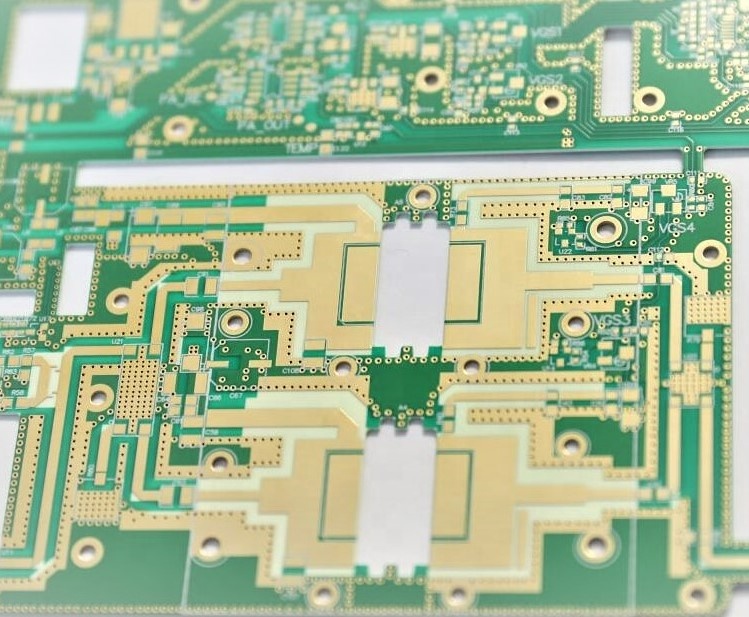

Green Rogers 4003C Material Electronic PCB 2 Layer 1OZ Immersion Gold
Rogers is a company that manufactures the laminate materials that are used to make electronic printed circuits circuit boards. Most PCBs are made of a material known as FR4 (Flame Retardant level 4), which is a glass fiber / epoxy composite, with traces pattern etched on one or both sides.
ROGERS 4003C and ROGERS 4350B provide a more cost-effective and processable choice of high frequency materials than other material, such as PTFE, due to its' excellence in low dielectric loss characteristics, and Rogers material PCBs are widely used in cellular base station antennas, power amplifiers, commercial microwave products and RF applications.
Our company always has all thickness and specifications of RO4003C and RO4350B material in stock to deliver your Rogers PCB on time.
Contact Linked Electronics today for your Rogers PCB demand, and we are happy to talk to you.
Our Main Service Includes the followings:
1. PCB manufacturing from 1 to 32 layers;
2. Component sourcing;
3. PCB Assembly;
4. PCB/ PCBA Test.
5. Stencil manufacturing
Quick Details
1• Place of Origin: Shenzhen, China (Mainland)
2• Brand Name: Linked Electronics
3• Layer Count: 2 Layer Rogers PCB
4• Base Material: Rogers 4003C
5• Copper Thickness: 35um
6• Board Thickness: 0.3mm
7• Min. Hole Size: 0.25mm
8• Min. Line Width: 6mil
9• Min. Line Spacing: 10 mil
10• Surface Finishing: ENIG
11• Testing Service: AOI,E-testing,Fly-Probe-Testing
12• Solder mask color:Green
13• Silkprint color:White
More Green Rogers 4003C Material Electronic PCB 2 Layer 1OZ Immersion Gold Details
| Product Name | Rogers 4003C PCB Board |
| PCB Spec | 0.3mm, 1oz, green soldermask, white legend, ENIG |
| Lead Time | 8 days if material in stock |
| Manfuacturing Standard | IPC Class 2, IPC Class 3 standard |
| Test Method | AOI, Flying Probe Test |
Why Choose Linked Electronics for Your PCB Demand
1. At Linked, all parts are purchased from Original Company and distributers.
2. All PCBs and PCBA products are made by strict engineer processes.
3. Very strict inspection processes through the whole production process.
4. PCBs and PCBA are well protected, we use vaccum package,antistatic package and carton box.
FAQs( Frequently PCB fabrication questions from customer)
1) What service can you provide?
At Linked, we provide pcb manufacturing, free sample and pcb fabrication service, PCBA, SMT and parts sourcing
2) Do you have an minimum order quantity?
We accept order with as low as a quantity of 1 (piece or panel).
3) Do you have the capability of manufacturing high frequency materials? For example Rogers 4003C?
Rogers 4003C PCB is within our capabilities, and we are happy to make the Rogers PCBs to you.
4) What file formats do you accept for PCB fabrication at Linked Electronics?
Gerber and CAM Auto CAD DXF, DWG formats.
